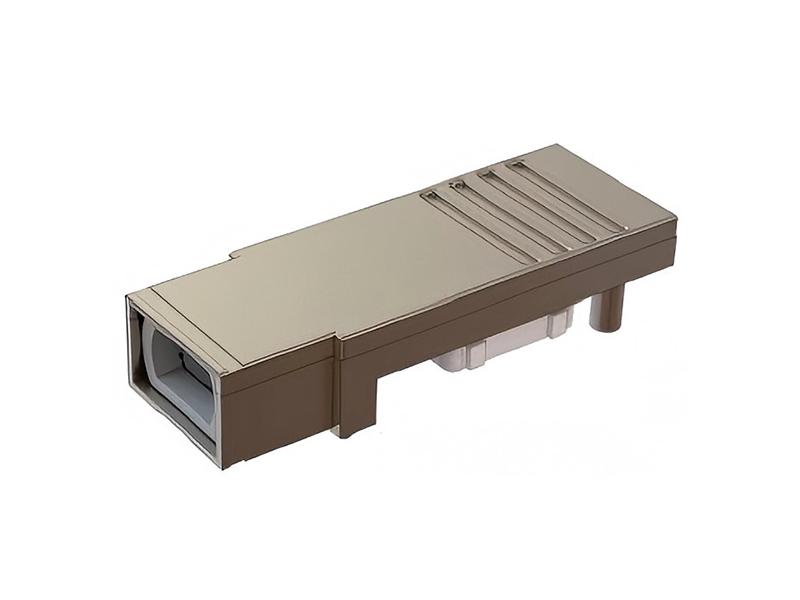

SNAP12 Serie Parallel-Optik-Transceiver-Modul

Features

• Mechanical dimensions compliant with the SNAP12 MSA protocol
• 10×10Pin pluggable electrical interface and MPO optical connector
• Low power consumption (<1.8 W)
• Integrated 850nm VCSEL array on the transmitter side
• Integrated 850nm photodiode (PD) array on the receiver side
• I2C serial interface with DDMI (Digital Diagnostic Monitoring Interface)
• Wide operating temperature range: -40°C to +85°C, excellent parameter consistency
•

Applications

• Ethernet and Fibre Channel (FC) optical backplane transmission
• Server-to-storage array interconnections
• Radar processing system interconnects

Model

Channels

Package

Wavelength

Rate

Tx Power

Rx Sensitivity

Package Structure

Operating Temperature

RSN12R-3GM-85-I

12-channel Receiver

SNAP12

850nm

3.125Gbps

－

≤-16dBm

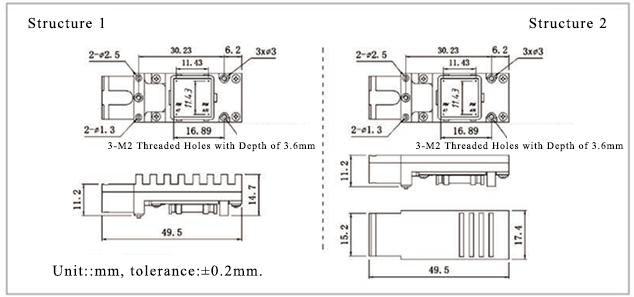

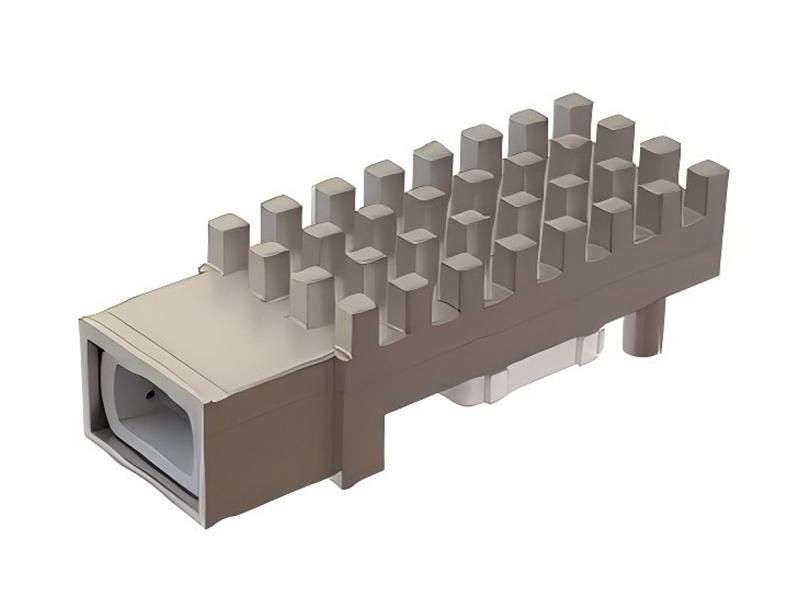

Structure 1

-40～+85℃

RSN12R-3GM-85A-I

SNAP12

(no heatsink)

850nm

3.125Gbps

－

≤-16dBm

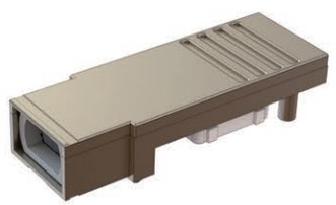

Structure 2

RSN12R-6GM-85-I

SNAP12

850nm

6.25Gbps

－

≤-14dBm

Structure 1

RSN12R-10GM-85-I

SNAP12

(no heatsink)

850nm

10.3125Gbps

－

≤-11dBm

Structure 2

RSN12T-3GM-85-I

12-channel Transmitter

SNAP12

850nm

3.125Gbps

-5～1dBm

－

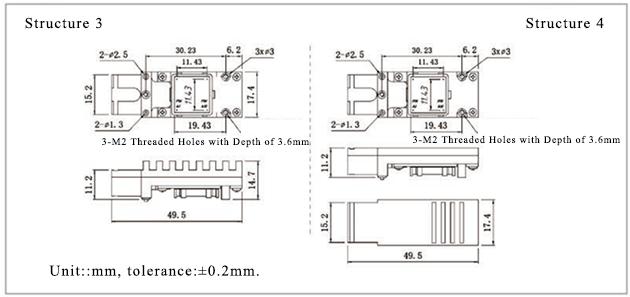

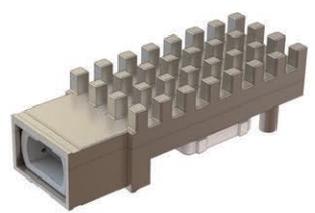

Structure 3

RSN12T-3GM-85A-I

SNAP12

(no heatsink)

850nm

3.125Gbps

-5～1dBm

－

Structure 4

RSN12T-6GM-85-I

SNAP12

850nm

6.25Gbps

-5～1dBm

－

Structure 3

RSN12T-10GM-85-I

SNAP12

(no heatsink)

850nm

10Gbps

-5～1dBm

－

Structure 4

RSN12-3GM-85-I

4-channel Transceiver

SNAP12

850nm

3.125Gbps

-5～1dBm

≤-16dBm

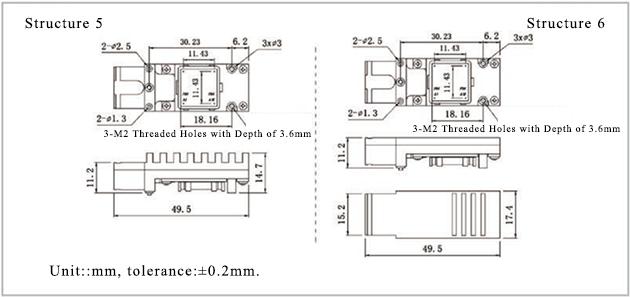

Structure 5

RSN12-3GM-85A-I

SNAP12

(no heatsink)

850nm

3.125Gbps

-5～1dBm

≤-16dBm

Structure 6

RSN12-6GM-85-I

SNAP12

850nm

6.25Gbps

-5～1dBm

≤-14dBm

Structure 5

RSN12-6GM-85A-I

SNAP12

(no heatsink)

850nm

6.25Gbps

-5～1dBm

≤-14dBm

Structure 6
